Project Overview

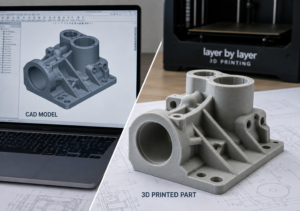

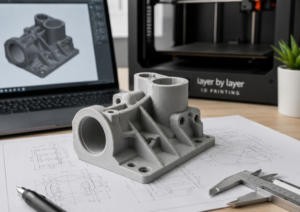

We created a custom 3D printed prototype from a CAD design, helping the client evaluate the product before moving to final manufacturing. FDM 3D printing provided a fast and cost-effective way to turn the digital model into a physical prototype.
Our Solution
The CAD model was prepared and optimized for 3D printing. We selected the appropriate print orientation, layer height, infill, and material to achieve a balance of strength, accuracy, print time, and surface finish.
Printing Process

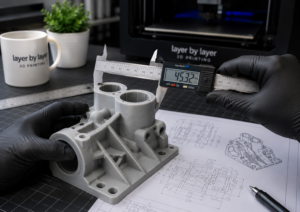

The prototype was manufactured using FDM 3D printing technology. After printing, the part was inspected and finished to ensure it met the required specifications.
Result
The final 3D printed prototype allowed the client to physically evaluate the design and identify potential improvements before proceeding with production.
Applications
- Product development
- Engineering prototypes
- Design validation
- Functional testing
- Mechanical components
Key Benefits
Fast • Cost-Effective • Custom • Iterative • Production-Ready Development
